PIPE END CAPS – ROUND, OVAL
MANUFACTURER/EXPORTER IN INDIA | ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43

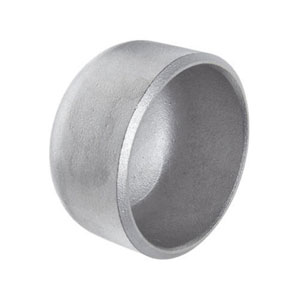

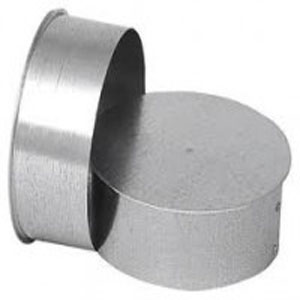

CARBON, ALLOY, STAINLESS STEEL PIPE CAPS

Steel Pipe Caps are the pipe fittings, which are mainly used as a plug to cover the end of a pipe. We can manufacture and supply pipe end caps in standard sizes, as well as in accordance with specification of our customers.

Various grades of pipe caps manufactured by Jirawala Pipes & Tubes includes 304/304L, 316/316L, 321, 347, 317L, 310S, 904L, Duplex, Alloy 201, Alloy 800H, Alloy C276, Cupro Nickel, Alloy 400, Alloy 625 and Alloy 600. Our stocking program includes stainless steel pipe caps and carbon steel pipe caps of standard sizes and grades. Our specialty is to offer our customers with pipe caps in various shapes – round, square, rectangular or other special shapes.

Jirawala Pipes & Tubes is a Leading Export & Suppliers exporter and manufacturer of steel pipe caps and our high quality products are widely exporter to international traders, companies and international stockholders in the United States, Europe, Russia, Turkey, Malaysia, the UAE, Saudi Arabia, Iran, Brazil, Chile, Mexico, South Africa, Jordan, Tunisia, Vietnam, Indonesia, Thailand, Singapore, Colombia, and Sri Lanka.



Pipe End Cap Production Range

Outside Diameter: 1/2″ – 48″
Wall Thickness: 2-40 mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards

ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2

ASTM A403 – ASME SA403 Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9 Factory-Made Wrought Fittings Buttwelding
ASME B16.25 Buttwelding Ends
ASME B16.28 Wrought Steel Short Radius Elbows and Buttwelding Returns
MSS SP-43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Pipe Cap Material Grades

Stainless Steel Pipe Cap ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Pipe Cap ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Pipe Cap ASTM A420 WPL3, A420 WPL6
Alloy Steel Pipe Cap ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Pipe Cap ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Pipe Cap ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At Jirawala Pipes & Tubes, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates:

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
